Key Takeaway
To read a pressure gauge correctly, start by identifying the unit of measurement (psi, bar, kPa, etc.). Observe the needle on the dial and note its position relative to the scale markings. Estimate the value between two markings if needed. Ensure you are reading the gauge at eye level to avoid parallax error. Check if the gauge starts from zero when there’s no pressure; otherwise, it may have a zero error. In digital gauges, simply read the displayed number. Always verify that the gauge range suits the system. Regular calibration and proper mounting are also key to getting reliable readings.
Aligning Your Eye to Avoid Parallax Errors
Parallax error occurs when you don’t view the gauge needle from the front. If your eye is above or below the dial, the needle appears in a different position — leading to inaccurate readings.
Always align your eye directly with the pointer and the dial markings. Some high-quality gauges include a mirror strip behind the needle. If the pointer aligns with its reflection, your view is correct.
This tiny detail matters. In precision systems, even a 1–2 PSI error due to parallax can cause deviation in quality or control. Train operators and ensure lighting is adequate near gauge panels.
Identifying Zero Mark and Calibration Points
The zero mark is where the pointer rests when no pressure is applied. Calibration starts with checking this — if the pointer isn’t at zero, there’s already an error.
Next, apply known pressure points (25%, 50%, 75%, and full scale) and compare actual readings to those values. If the pointer consistently deviates, it’s a calibration offset. If deviations vary at each point, that indicates non-linearity or internal damage.
Gauges often have calibration screws hidden beneath the dial. But don’t adjust blindly — always compare against a master gauge and document changes. Clear zero and correct calibration ensure every other reading is trustworthy.
Reading Different Units and Scales
Pressure gauges come with dials marked in:
Bar
PSI
kPa
mmHg
kg/cm²

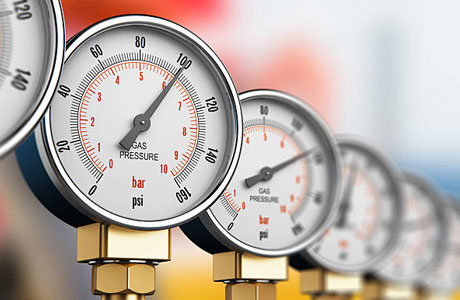

Some dials have dual or triple scales. Always verify the unit before interpreting the value. Misreading units can lead to overpressure, system failure, or underperformance.
Example:
1 bar = 14.5 PSI
100 PSI ≈ 6.89 bar
Standardize units across your plant wherever possible. Label clearly in manuals, dashboards, and training sessions. Confusion over units is a hidden but dangerous risk.
Interpreting Color Bands and Red Lines
Color-coded markings help technicians quickly assess pressure status:
Green: Normal operating range
Yellow: Warning zone – approaching limits
Red: Danger – overpressure or vacuum risk
These bands can be painted on the dial, applied as stickers, or embedded during manufacturing. They’re especially useful for:
Boiler systems
Compressor lines
Hydraulic presses
Red lines are also used to show max working pressure. Always customize markings based on your process safety limits and train operators to respond appropriately when readings approach unsafe zones.
Digital Display Features and Readability
Digital pressure gauges offer a number of features that enhance readability and usability, especially in challenging environments.
Key features include:
Large backlit displays for low-light visibility
Auto-scaling to switch between units like psi, bar, and kPa
Real-time sampling for fast-changing systems
Hold functions to freeze current values
Peak hold and min/max tracking
Visual alarms (flashing icons, color codes)
These features make digital gauges ideal for noisy, dark, or high-movement areas where analog needles are hard to read.
Digital readability also reduces human error in fast-paced environments — the exact pressure value is shown, no interpretation required. For training new staff or handling critical tasks, this is a big advantage.
Modern gauges may include touch buttons, rotatable screens, and Bluetooth or wireless data export, making integration into digital ecosystems seamless.
While battery life and cost are concerns, the convenience and clarity offered by digital displays significantly improve monitoring accuracy and user confidence.
Conclusion
Reading a pressure gauge incorrectly can lead to misdiagnosis of system performance, wasted troubleshooting time, or even unsafe conditions. Parallax error on analog dials, misreading decimal points on digital displays, or ignoring unit conversions (PSI vs bar) can have serious consequences. Operators must be trained not only on how to read a gauge, but also on when to question a reading. Visual checks like needle alignment, dial condition, and indicator stability also matter. Inaccurate readings often result in unnecessary part replacements or operational downtime. But with the right technique and attention to detail, a pressure gauge can be your most accurate—and cost-effective—source of performance insight.
