Key Takeaway
To choose the right pressure switch, start by understanding your system’s pressure range. Make sure the switch’s operating range covers your system’s minimum and maximum pressures. Next, decide if you need a mechanical switch for basic ON/OFF control or an electronic switch for more accuracy and features. Check if the medium is air, water, oil, gas, or a special fluid — and select materials that can handle it safely. For example, corrosive fluids need stainless steel or Teflon parts. Also, match the voltage rating with your power source (AC or DC). Choose NO or NC contacts based on what you want the switch to do. Consider environmental factors too — like dust, moisture, or explosion risks. If needed, look for IP-rated or explosion-proof models. Always follow the manufacturer’s datasheet and get expert help if unsure. The right switch improves performance, safety, and equipment life.
Define the Pressure Range Needed
Before selecting a pressure switch, clearly define your system’s pressure range. Consider both normal operating pressure and peak values, including surges. The switch’s range must comfortably cover your cut-in and cut-out needs while staying well below its proof and burst limits. For example, a system that operates between 40–60 PSI may use a switch rated for 30–80 PSI. Selecting too narrow a range risks overload, while too wide can reduce accuracy. Also factor in media type, cycling frequency, and temperature. A well-matched pressure range ensures better performance, safer operation, and longer switch life across industrial or residential systems.

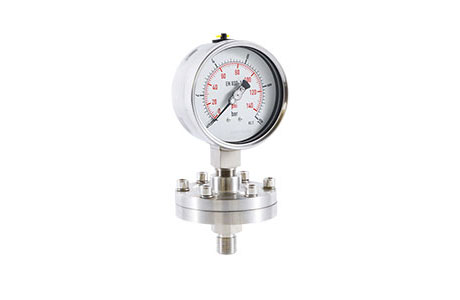

Identify the Media Type (Air, Water, Oil, Steam)
Not all media are created equal. Air flows easily, oil is viscous, steam is hot and aggressive.
Your switch must be compatible with the media it will contact.
Air systems? Most basic switches can handle them. NBR diaphragms and brass bodies are common here.
Water or oil? Watch for compatibility. Ensure seals and diaphragms can handle the media’s temperature and chemical properties.
Steam systems? Now you’re entering serious territory. Only select pressure switches rated for high temps and thermal expansion. EPDM seals, stainless housing, and specialized diaphragms are a must.
Media affects wear rate, chemical exposure, and pressure dynamics. So always tell your supplier what fluid or gas you’re dealing with.
Understand Contact Type: NO, NC, or Both
This part often confuses new engineers. Let’s simplify.
NO (Normally Open): No current flows until pressure activates the switch.
NC (Normally Closed): Current flows until pressure breaks the circuit.
SPDT (Single-Pole Double-Throw) switches give you both—NO and NC in one.
For alarms, shutdowns, or indicator lights—NO is common. For holding relays or feedback loops—NC is preferred.
If you’re not sure what the PLC or relay expects, go with SPDT. It’s safer and gives flexibility.
Electrical contacts aren’t about pressure—they’re about logic. Think of how your control system should behave when pressure hits the mark.
Consider the Environment: IP Rating & Zone
Here’s a rookie mistake—ignoring the environment.
Will the switch sit indoors, outdoors, or in a washdown zone? Is there explosive gas around? High dust or oil mist?
IP Ratings tell you how well the switch is sealed. IP65 means dustproof and water-jet safe. IP67? Submersible. IP68? Continuous underwater use.
Hazardous zones (like ATEX or IECEx classified) need certified explosion-proof pressure switches. These are non-negotiable in gas or dust-prone areas.
Also, consider temperature range. If your plant hits 60°C or freezes at -20°C, the material and electronics must handle that.
Environmental ratings aren’t just labels. They’re your safety certificate.
Mechanical or Digital – Which One Fits Best?
Still using a mechanical switch in a smart factory? Might be time to rethink.
Mechanical pressure switches are affordable, durable, and time-tested. They don’t need external power and are great for simple on/off actions.
Digital pressure switches offer display screens, programmable setpoints, and higher precision. Many come with 4–20mA or Modbus outputs.
Go mechanical when cost, simplicity, and durability matter. Go digital when you need remote monitoring, fine tuning, or integration with a PLC/SCADA system.
Sometimes hybrid systems use both—one for control, one for feedback.
So ask: Do you need a rugged trigger or a smart communicator?
Conclusion
Choosing the right pressure switch means matching your exact application needs. Start by identifying the operating pressure range, media (air, oil, water, gas), contact type (NO/NC), and mounting environment. Then factor in the control system—will it connect to a relay or PLC? Consider certifications, IP rating, and voltage compatibility too. Overlooking any of these details could result in failure or costly retrofits. For example, using a switch meant for air on a corrosive fluid line will ruin the diaphragm quickly. If unsure, consult the manufacturer or a technician. The more accurately your specs match your switch, the fewer problems you’ll face. One wrong parameter can cause an entire system issue.
