Key Takeaway
A digital pressure gauge uses electronic sensors to measure pressure and display the value on a digital screen. It typically employs strain gauges, piezoelectric sensors, or capacitive sensors to convert pressure into an electrical signal. These gauges offer high accuracy, quick response, and easy-to-read displays. Many digital pressure gauges come with features like backlighting, data logging, and overpressure alarms. They are ideal for industrial, laboratory, and high-precision applications where analog dials may be difficult to interpret. Digital gauges also support remote monitoring and integration with control systems. They’re used in aerospace, HVAC, hydraulics, and food industries for efficient and precise pressure monitoring.
Components and Display Mechanism

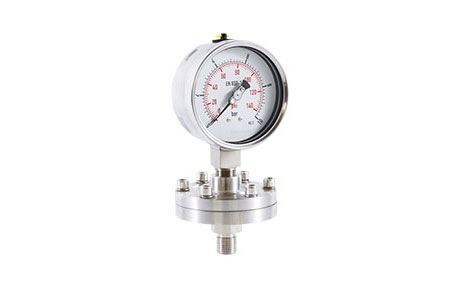

A mechanical pressure gauge might look simple on the outside, but inside it contains multiple components working together. The key parts are:
Sensing element (Bourdon tube, diaphragm, capsule)
Linkage mechanism (gears and pivots)
Pointer needle and dial scale
Case and window (protective housing)
The sensing element deforms under pressure. This deformation is transmitted via a gear mechanism to rotate the pointer across the calibrated scale.
Modern gauges may include vibration dampers, bimetallic temperature compensation, and even electrical contacts for alarm triggers. A clean display and accurate scale help technicians make fast, confident decisions. Always inspect gauges for foggy windows, rusted parts, or bent pointers — these are signs of wear and inaccuracy.
Sensor Technology Used (Strain Gauge, Piezoelectric, etc.)
Modern pressure sensors rely on electronic components instead of mechanical deflection. Common technologies include:
Strain Gauge: Measures resistance change due to deformation of a diaphragm. Highly accurate and widely used.
Piezoresistive: Similar to strain gauge but uses silicon elements. Common in integrated circuits.
Piezoelectric: Generates voltage under pressure. Excellent for dynamic pressure but not for static readings.
Capacitive: Measures change in electrical capacitance as diaphragm moves. Good for low-pressure applications.
Each sensor has trade-offs in accuracy, cost, range, and environmental resistance. Selection depends on whether your application needs fast response, continuous monitoring, or extreme pressure handling.
Advantages Over Analog Gauges
Digital gauges offer several benefits over analog models:
Higher accuracy (typically ±0.1% vs ±1.6% in analog)
No parallax error
Backlit displays for low-light visibility
Data logging and trend monitoring
Alarm setpoints and communication outputs
They’re perfect for industries that demand traceability (like pharma or aerospace). The only drawback? They require power and are less durable in shock/vibration zones unless ruggedized.
Still, for automation, diagnostics, or tight tolerance processes, digital gauges outperform analog by a wide margin.
Typical Applications in Industrial Control Systems
Pressure instruments are embedded in many industrial control systems to:
Start/stop pumps
Adjust valves
Trigger alarms
Protect equipment from overpressure or vacuum
Examples:
Pneumatic circuits: Compressor cut-in/cut-out control
Boiler systems: Steam pressure regulation
Hydraulic presses: Pressure feedback for pressing force
CIP systems: Ensure cleaning line pressure is sufficient
They work with controllers (PLC/DCS), relays, and actuators to maintain setpoint conditions — forming the foundation of automated industrial operations.
Battery and Power Considerations
Digital pressure gauges and sensors require a stable power source. The choice between battery and external power depends on usage, mobility, and integration.
Battery-powered gauges are ideal for portable applications or remote locations without access to grid power. These units typically use lithium batteries and may last 1–2 years depending on screen size, sampling rate, and backlight usage. Sleep modes and auto-off functions extend battery life.
Externally powered gauges, on the other hand, are used in fixed installations and automation systems. They often operate on 24V DC and support continuous data transmission to PLCs or monitoring software.
Key considerations:
Check battery life specs before deployment.
Use low-power display modes when monitoring infrequently.
Ensure environmental protection — battery compartments must be sealed in dusty or humid areas.
For high-precision tasks, avoid low battery states that can affect sensor stability.
For critical systems, a low battery warning or redundant power supply is recommended. A sudden gauge shutdown can lead to unmonitored pressure surges and system failure.
Power is the heartbeat of a digital gauge. Without it, accuracy, alerts, and logging all stop.
Conclusion
Digital pressure gauges have revolutionized industrial measurement by combining high accuracy with user-friendly displays. Unlike analog dials, digital gauges eliminate parallax error and can display multiple units (PSI, bar, Pa) at the push of a button. Many models include features like data logging, alarms, and remote transmission, making them ideal for automation, HVAC systems, or calibration labs. They’re also more compact and easier to read in low-light or mobile conditions. However, they depend on battery life and require careful handling in harsh environments. For precision, versatility, and easy integration into control systems, digital gauges are often the best option—especially when real-time data and remote monitoring are required.
