Key Takeaway

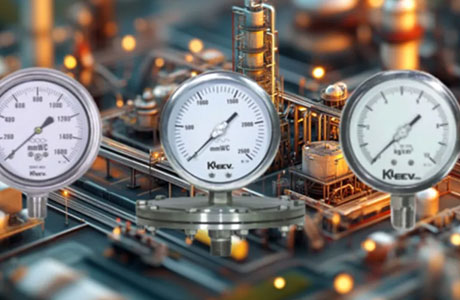

A high-pressure gauge is designed to measure and withstand pressure levels significantly above atmospheric pressure, often exceeding 1000 bar or 15,000 psi. These gauges use reinforced materials like stainless steel and are often liquid-filled to dampen vibrations. They’re used in hydraulic systems, oil and gas exploration, water jetting, pressure testing, and aerospace applications. High-pressure gauges must comply with safety regulations and are tested for burst protection. Their robust design and precise calibration ensure safe operation in extreme conditions. They’re essential wherever high-pressure fluids are handled and where equipment failure due to overpressure can be catastrophic.
Definition and Operating Range
The operating range of a pressure gauge refers to the span between its minimum and maximum pressure values that can be accurately measured. A typical gauge might have a range of 0–10 bar or 0–200 PSI.
Selecting the right range is crucial. Never choose a gauge where the operating pressure is near the upper limit. Instead, select a gauge where your working pressure is around 40–60% of the full scale. This avoids overloading and preserves accuracy.
Each gauge should be clearly labeled with its operating range. Using a gauge outside its range is not just incorrect — it’s dangerous and will destroy the sensing element over time.
Materials Used for High-Pressure Applications
When dealing with high pressures (above 100 bar), material selection is critical. Common materials include:
316 Stainless Steel: Corrosion-resistant and suitable up to ~600 bar
Monel: Ideal for aggressive chemicals
Inconel or Hastelloy: Used in extreme pressure and temperature conditions
For the sensing elements (Bourdon tubes, diaphragms), the material must handle both the pressure stress and chemical exposure. Always check compatibility with the process fluid — especially in petrochemical, offshore, or chemical plants.
Failure to select the right material leads to cracking, fatigue, or sudden failure — which in high-pressure systems can be catastrophic.
Common Use Cases: Hydraulic Systems, CNG, Aerospace
Different industries rely on pressure gauges in critical roles:
Hydraulic systems: Monitor actuator pressure, detect overloads
CNG stations: Ensure safe fueling at high pressures (up to 250 bar+)
Aerospace: Fuel lines, cabin pressurization, and test chambers
These environments demand:
Rugged designs
High accuracy
Fast response
In aerospace and CNG, safety is non-negotiable. Gauges here are often redundant, certified, and pressure-tested for burst strength.
Safety Features for High-Pressure Operation
In high-pressure systems, safety is non-negotiable. Gauges must include:
Blowout back: Allows pressure relief if internal rupture occurs
Over-range protection: Mechanical stops to prevent pointer over-travel
Safety glass or laminated dials: Prevent shattering
Stainless steel case and internals: For durability
Install gauges with pressure snubbers or pulsation dampeners near compressors or valves to avoid shock damage.
High-pressure failures can be explosive. Always verify pressure rating, certification (e.g., EN 837), and installation practices for safe operation.
Calibration Challenges in High-Pressure Environments
Calibrating gauges for high-pressure systems (above 1000 psi) poses unique challenges:
Safety Risk: Pressure sources can be dangerous. Any leak or burst during calibration can be catastrophic.
Equipment Stress: High pressure can strain reference instruments. Special deadweight testers or high-strength calibrators are needed.
Heat Generation: Compressing fluids at high pressure generates heat, which can affect readings.
Access: In pipelines or offshore rigs, it may be difficult to isolate and calibrate without shutdowns.
Best practices:
Use pressure relief valves during calibration.
Apply pressure gradually.
Use certified master gauges traceable to national standards.
Perform calibration at operating temperature to reduce thermal variation.
High-pressure calibration demands expert attention and quality tools — cutting corners here can have expensive consequences.
Conclusion
High-pressure gauges are engineered to withstand and accurately measure pressures far beyond standard ranges—often in excess of 1,000 bar. They’re used in hydraulic systems, CNG storage, aerospace, and heavy manufacturing. These gauges require special materials like stainless steel and reinforced connections to resist deformation and fatigue. Safety features, such as blow-out back panels and overload protection, are often included. Without the right gauge, extreme pressure can cause sensor rupture, inaccurate readings, or equipment failure. Selecting a gauge with the proper range, burst tolerance, and safety margin is vital. When pressures are intense, precision and durability become non-negotiable. High-pressure gauges deliver both—protecting processes, personnel, and infrastructure from dangerous overpressure.
