Key Takeaway
A Magnehelic gauge is a type of differential pressure gauge used to measure low-pressure differences, especially in clean rooms, air filters, and ventilation systems. It operates using a diaphragm mechanism and a magnetic linkage. When a pressure difference is applied across its ports, the diaphragm deflects, and this movement is transferred via a magnetic linkage to a pointer on the dial. It can measure both positive and negative (vacuum) pressures. The Magnehelic gauge is preferred for its sensitivity, accuracy, and no need for electrical power. It’s ideal for HVAC systems, laboratories, and industrial environments where airflow or pressure balance is critical.
Definition and Operating Principle

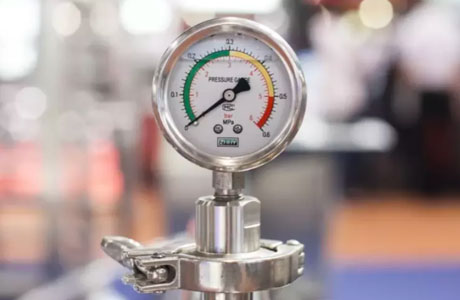

A pressure gauge is a device that measures the force exerted by a fluid (liquid or gas) per unit area. It helps operators monitor safe operating conditions in systems like boilers, compressors, and pipelines.
The most common operating principle is mechanical. Take the Bourdon tube: as pressure fills the tube, it tries to straighten. This motion is transferred via mechanical linkages to a dial needle.
Other types work differently — diaphragm gauges deform a flexible membrane, while digital sensors use piezoelectric or strain gauge elements to convert pressure into electrical signals.
Regardless of type, all gauges serve one purpose: to give you a reliable, real-time reading of pressure inside a closed system. Without this information, system control becomes guesswork.
Applications in HVAC and Clean Rooms
In HVAC systems, pressure gauges and sensors are used to monitor air flow, filter conditions, and duct static pressure. Even a slight drop in pressure can indicate a clogged filter or damaged duct.
In clean rooms, pressure differentials maintain air quality. Positive pressure keeps contaminants out; negative pressure contains hazardous materials. Pressure sensors must be highly accurate and capable of detecting changes as small as 5–10 Pa.
These systems often use digital differential pressure gauges with alarms or BACnet/Modbus communication. Clean room compliance (like ISO Class 7) depends on consistent and well-calibrated pressure instrumentation.
How It Measures Differential Pressure
A differential pressure gauge has two ports: High (H) and Low (L). It measures the pressure difference between these two points — not the individual pressures.
It works by allowing each pressure to act on opposite sides of a diaphragm or capsule. The difference in force moves a mechanical or electronic mechanism that’s calibrated to display ΔP (P1 – P2).
These gauges are commonly used:
Across filters
Across pumps or valves
Between clean room zones
Accurate differential pressure monitoring helps detect clogging, flow restrictions, or leaks — all without needing two separate gauges.
Comparison with Other Differential Gauges
Differential pressure (DP) gauges can be:
Mechanical: Using dual diaphragms or bellows
Electronic: Using two pressure sensors and a digital processor
Manometric: Using fluid columns
Compared to basic gauges, DP gauges offer:
Filter clogging detection
Flow monitoring
Pump wear identification
They’re better suited for systems with pressure drops across components. While more expensive, their diagnostic value justifies the cost — especially in process plants, HVAC, or filtration setups.
Best Practices for Magnehelic Gauge Use
Magnehelic gauges are used to measure low differential pressures, especially in HVAC, cleanrooms, filter monitoring, and laminar airflow systems. These gauges offer a clear analog display and high sensitivity, but require proper installation and use to deliver accurate results.
Mount the Magnehelic gauge in a vibration-free area, ideally on a flat vertical surface. Ensure it is level — even a slight tilt can affect accuracy. Use soft tubing and avoid tight bends or kinks in the connections, as this may restrict airflow and distort readings.
Before taking a reading, verify that the ports are connected correctly — high pressure to the ‘+’ port and low pressure to the ‘–’ port. Using the reverse will not only confuse readings but may also damage the diaphragm.
Zero the needle before use by adjusting the screw on the front. This should be done after the gauge is powered but before pressure is applied. Periodically check for dust or microbial buildup in cleanroom or laboratory applications — it can clog the ports.
Finally, avoid over-pressurizing. While most Magnehelic models have a built-in overpressure safety feature, exceeding limits can still degrade the diaphragm over time.
Conclusion
Magnehelic gauges are ideal for measuring low pressure or small pressure differentials—especially in HVAC, cleanrooms, and air filtration systems. Unlike Bourdon tube gauges, which are more suited for medium to high pressures, Magnehelic gauges offer excellent sensitivity and low-pressure resolution. They work by balancing magnetic forces and diaphragm movement, ensuring accurate readings without fluid-filled columns. Their rugged design, large dial, and shock resistance make them ideal for static and dynamic measurements. They require minimal maintenance and offer high reliability. Whether you’re measuring fan airflow, filter condition, or lab environment integrity, Magnehelic gauges provide real-time visibility into pressure trends. Their simplicity and precision make them a go-to choice for low-pressure environments.
