Key Takeaway
A Magnehelic pressure gauge is a mechanical differential pressure gauge used primarily for low-pressure air or gas applications. It operates using a diaphragm that responds to pressure differences between two ports. This movement is transferred magnetically to a pointer on the gauge face, hence the name “Magnehelic.” It’s commonly used to measure airflow in HVAC systems, filter status, cleanroom pressure, and duct pressure. The Magnehelic gauge is reliable, requires no power supply, and offers accurate low-pressure readings in ranges as low as ±0.5 inches of water column. It’s durable, easy to install, and a standard in ventilation performance monitoring.
Operating Principle Using Magnetic Helix
In certain compact or electronic pressure gauges, a magnetic helix system replaces the traditional mechanical gear train. Here’s how it works:
As the sensing element (usually a diaphragm or capsule) deforms, it moves a small magnet. This magnet is coupled with a helical spring or a magnetic pointer assembly. The resulting magnetic torque rotates the pointer.
This design eliminates friction and mechanical wear — improving accuracy and long-term reliability. Magnetic helix gauges are also less affected by vibration, making them ideal for harsh industrial conditions.
Though more expensive than basic mechanical models, they are a smart investment for critical systems where consistent accuracy is essential.
Applications in Clean Rooms and HVAC
Pressure monitoring is vital in clean rooms and HVAC systems. In clean rooms, differential pressure between zones ensures contamination doesn’t enter critical areas. For example, operating rooms or pharmaceutical labs maintain positive pressure.
In HVAC systems, pressure gauges are used to:
Detect clogged filters
Balance airflow
Monitor blower and duct performance
Maintain proper refrigerant charge in chillers and split units
Digital differential pressure transmitters are commonly used here due to their sensitivity and communication capabilities. Pressure control ensures both safety and regulatory compliance in these environments.
How It Measures Differential Pressure
Differential pressure gauges measure the difference between two points. Internally, two pressure chambers act on opposite sides of a diaphragm or bellows.
The imbalance causes deflection — which is converted into dial or digital readout. The system is calibrated to ignore equal pressures and respond only to the pressure difference (ΔP).
Typical uses:
Monitor pressure drop across filters
Detect pump wear
Validate airflow in HVAC ducts
They save space, reduce wiring (compared to using two separate gauges), and improve diagnostic clarity.
Accuracy and Range Capabilities
Accuracy is the maximum deviation from the true value, typically expressed as a % of full scale (FS):
Class 1.0 = ±1% FS
Class 0.5 = ±0.5% FS
Digital = ±0.1% FS or better
Range defines the span the gauge can read. But don’t operate at the extremes. For optimal performance:
Choose a gauge where normal operating pressure is 40–60% of FS
Use overpressure protection for spike-prone systems
High-accuracy gauges are essential in pharma, calibration labs, and aerospace. For general monitoring, moderate accuracy is usually sufficient.

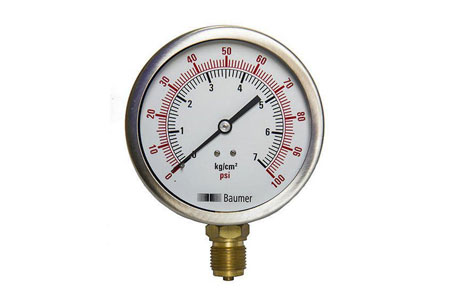

Installation and Maintenance Guidelines
Proper installation is as important as selecting the right pressure gauge. A poorly installed gauge will provide inaccurate readings and may fail prematurely.
Installation tips:
Mount the gauge upright unless specified otherwise.
Use a wrench on the hex base — not the gauge body — when tightening.
Apply PTFE tape to threads for sealing but avoid over-tightening, which can damage the inlet.
For vibration-prone areas, use liquid-filled gauges or snubbers.
Install gauges at eye level for easier reading and minimal strain.
Maintenance practices:
Inspect regularly for cracks, fogging, leaks, or needle sticking.
Check zero calibration during shutdown or when the system is at rest.
Replace worn or damaged gauges immediately.
Clean vents on liquid-filled gauges to prevent pressure build-up.
Over time, debris, corrosion, or system vibration can misalign the mechanism. Regular checks ensure continued accuracy and reduce unexpected failures.
Treat gauges as sensitive instruments — not just display tools. Their life depends on thoughtful setup and care.
Conclusion
Magnehelic gauges are designed for low-pressure differential measurement, particularly in air and non-corrosive gas systems. They’re commonly found in HVAC systems, cleanrooms, air filters, and laminar flow cabinets. These gauges are sensitive, accurate, and easy to read thanks to their large dial and mechanical design. They measure small pressure differences by using a diaphragm and magnetic linkage, offering reliable performance without liquid columns or electronics. Magnehelic gauges don’t require power and are resistant to shock and vibration. They also help detect filter clogging and ventilation issues before they impact performance. For monitoring airflow or small pressure differentials, they are the go-to option due to their simplicity and dependability.
