Key Takeaway
A pressure gauge is an instrument used to measure the pressure of a fluid (liquid or gas) within a closed system. It displays the amount of force exerted by the fluid per unit area, typically in units like psi, bar, or Pascal (Pa). Pressure gauges are vital for ensuring equipment operates within safe and optimal pressure limits. There are various types, including Bourdon tube, diaphragm, digital, and differential gauges, each suited for specific applications. These devices help monitor processes in industries like oil and gas, manufacturing, HVAC, automotive, and more. They also play a crucial role in detecting system anomalies, preventing accidents, and maintaining efficiency by alerting users to high or low-pressure conditions.

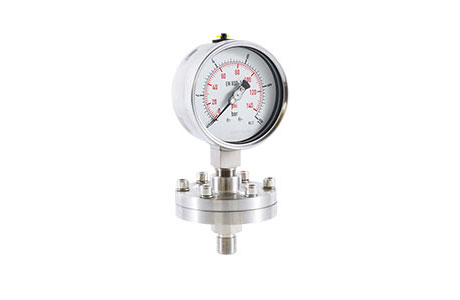

Basic Definition and Function
A pressure gauge is a device used to measure the pressure of a fluid (gas or liquid) within a closed system. It provides real-time information that operators use to maintain process control, prevent failures, and ensure safety.
There are different types of gauges — mechanical (Bourdon, diaphragm, capsule) and digital (sensor-based, display-integrated). Regardless of the type, the goal is the same: indicate pressure.
Why is this important? Because pressure changes signal everything — leaks, clogs, equipment overload, or safety risk. If pressure rises unexpectedly, it could mean a blocked outlet or malfunctioning relief valve. If pressure drops, maybe there’s a leak or supply problem.
Without pressure gauges, you’re blind. These devices are small in size but massive in importance. Every engineer must know how to read, select, and maintain them.
History and Evolution of Pressure Gauges
Pressure gauges have been around since the 17th century. Early versions included U-tube manometers filled with mercury, used by scientists like Torricelli to study atmospheric pressure.
The modern Bourdon tube gauge was invented in 1849 by Eugène Bourdon. Its elegant design — a curved metal tube that straightens under pressure — became the global standard due to its simplicity and accuracy.
Later came diaphragm gauges, digital pressure indicators, and electronic transmitters. Today’s sensors use piezoresistive or strain gauge technology to deliver real-time pressure data to PLCs and control systems.
From steam engines to space shuttles, pressure gauges have evolved — but the goal remains the same: monitor, protect, and control.
Mechanical vs Digital Pressure Gauges
Mechanical gauges use springs and linkages to show pressure. They’re rugged, inexpensive, and don’t require power — ideal for on-site checks or legacy systems.
Digital gauges use sensors to convert pressure into electrical signals. They offer:
Higher precision
Data logging
Alarms
Remote access
Use mechanical gauges for local, visual monitoring where durability is key. Choose digital for automated systems, remote monitoring, or when tight tolerances are required.
In many plants, both types are used together — the mechanical gauge as a backup to the digital system. Redundancy equals reliability.
Key Components and Design Features
A mechanical pressure gauge typically includes:
Sensing element (Bourdon tube, diaphragm, or bellows)
Linkage mechanism (gear and pinion)
Pointer and dial
Case and window
Vent plug or blow-out disc (for overpressure safety)
Optional features:
Liquid filling (glycerin or silicone for vibration resistance)
Snubbers to slow down pressure spikes
Reset screws for zero calibration
Digital gauges add:
Sensor chip
Microprocessor
Backlit LCD display
Signal output terminals
Design varies by application — rugged outdoor use, cleanroom installations, or high-pressure zones each require different features.
Importance in Industrial and Domestic Applications
Pressure gauges are vital across both industrial and domestic settings — though their roles, scales, and safety requirements may differ.
In industrial environments, gauges monitor everything from boiler pressure to hydraulic systems and chemical processing. Accurate readings help prevent accidents, maintain efficiency, and ensure regulatory compliance. In steam boilers, incorrect pressure can lead to catastrophic failure. In pneumatics, pressure ensures that actuators respond correctly.
Domestic uses include water pumps, fire extinguishers, car tires, gas cylinders, and HVAC systems. A faulty gauge in a household pressure tank can result in water pressure issues or damaged appliances.
In both contexts, the core function is the same: monitoring safe and efficient operation. But industrial settings demand higher accuracy, greater durability, and compliance with international standards like ASME, EN837, or ISO.
Meanwhile, in domestic use, simplicity and readability are key. Most users aren’t engineers — so clear dials and built-in safety features like pressure relief valves are essential.
Ultimately, whether it’s an oil refinery or a washing machine, the right pressure gauge ensures safety, saves energy, and prevents breakdowns.
Conclusion
A pressure gauge isn’t just a device—it’s a safety component. It helps prevent catastrophic failures caused by overpressure or system leaks. By offering real-time feedback, it gives operators the chance to act before something goes wrong. Whether in a steam boiler, hydraulic system, or gas pipeline, pressure gauges are the first alert mechanism. They’re also crucial during startup, maintenance, and emergency shutdowns. When properly installed, maintained, and calibrated, they offer a reliable way to keep operations within safe limits. Safety standards in many industries require pressure monitoring, and the humble gauge fulfills this role brilliantly. It’s cost-effective, easy to install, and always on guard—making it a must-have for system protection.
