Key Takeaway
A vacuum pressure switch is designed to work in systems where pressure is below atmospheric level — also known as a vacuum. Instead of detecting high pressure, it senses when pressure drops too low. When the vacuum level crosses a set point, the switch opens or closes an electrical contact to start or stop a connected device. These switches are used in vacuum pumps, suction systems, packaging machines, and medical equipment. For example, in a vacuum pump, the switch can turn the pump OFF once the desired vacuum is reached. Or it can sound an alarm if vacuum drops, which could mean a leak. Just like regular pressure switches, vacuum switches can be mechanical or electronic. The key difference is the pressure range — vacuum switches operate in negative pressure (below 0 bar or 0 psi). They are essential for maintaining safe and consistent performance in vacuum-based systems.
Designed to Trigger Under Negative Pressure
A vacuum pressure switch is specifically built to operate under negative pressure conditions, or vacuum. These switches trigger when the pressure drops below atmospheric level, commonly used in suction systems, vacuum lifters, and laboratory equipment. Inside, they function similarly to standard switches but are calibrated for lower-than-zero pressures. Typical applications include confirming vacuum presence, preventing dry pump runs, or controlling vacuum seal systems. Adjusting the vacuum setpoint ensures accurate switching under your specific process needs. As with positive pressure switches, selecting proper material and pressure range is vital. Vacuum switches play an essential role in delicate systems where even small pressure deviations matter.
Typical Use in Suction and Vacuum Systems
Vacuum switches are found in a wide range of suction-based industrial setups. You’ll commonly see them in packaging lines where vacuum is used to pick and place items. They’re also a staple in HVAC systems, medical devices, and even CNC machines.
Let’s take an example: In a vacuum lifter used in a warehouse, the switch monitors if there’s enough suction to lift the material safely. If the vacuum drops—maybe due to a leak or pump failure—the switch shuts down the operation to prevent accidents.
In pneumatic conveying systems, vacuum switches help regulate the suction needed to transport powder or granules through pipes. They alert the system when suction is too low to move materials efficiently.
These switches also play a role in safety systems. In some chemical processes, vacuum switches monitor negative pressure to avoid implosion or contamination.
Their biggest advantage? Automation. By integrating with control systems, vacuum switches help avoid manual checks. That’s efficiency, safety, and reliability rolled into one.
If you’re new, pay attention during installation—wrong placement or incorrect orientation can cause the switch to malfunction. Always follow the manufacturer’s guidelines.
Difference Between Vacuum and Standard Switches
Here’s a key thing to remember: not all pressure switches are made the same. A vacuum pressure switch is specifically built to detect below atmospheric pressure, while a standard pressure switch typically detects above atmospheric pressure.
Think of a regular pressure switch in a water pump. It turns on when pressure builds up. Now think of a vacuum switch in a suction system. It turns on (or off) when pressure drops. The logic is reversed.
Their construction may look similar, but internally, the sensing mechanism is tuned for different pressure ranges. Vacuum switches are calibrated for lower ranges, often from -1 bar to 0 bar (or equivalent in psi or mmHg).
Also, their response curves and tolerances differ. Standard pressure switches might not be sensitive or accurate enough at vacuum levels. Using the wrong type can lead to unreliable readings or even device failure.
Another difference? Porting. Vacuum switches often use special fittings or filters to prevent contamination from fine particles or vapors that are common in vacuum systems.
If you’re ever confused between the two, just ask yourself: “Am I monitoring pressure above or below atmospheric?” That question alone will guide your choice.
Adjusting the Vacuum Setpoint
Setpoint adjustment might sound technical, but it’s straightforward once you get the hang of it.
Every vacuum switch has a predefined operating range. Let’s say it’s -0.2 to -0.9 bar. Within that range, you choose the point where you want the switch to trigger. This is the setpoint.
Adjustment is usually done using a screw or dial mechanism on the body of the switch. As you turn it, the internal spring tension changes, which shifts the activation point.

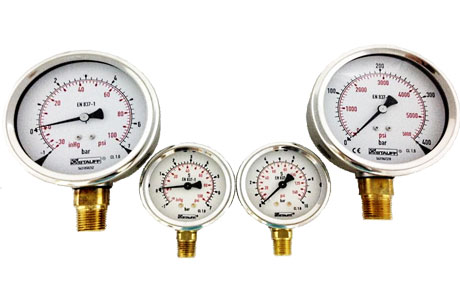

Here’s a real-life tip: use a vacuum gauge in parallel while setting the switch. Watch the gauge as vacuum increases and see exactly when the switch activates. Fine-tune it until it matches your process need.
Why does this matter? A wrong setpoint can either make the system too sensitive (leading to false alarms) or too lazy (causing delays that might damage equipment).
Also, temperature and altitude can affect calibration. So, always adjust the switch in-situ—on the actual machine, under working conditions.
Key Industries That Use Vacuum Switches
Vacuum switches aren’t just niche components—they’re everywhere. Once you start spotting them, you’ll realize how many industries rely on them. Manufacturing is a big one. In CNC machines and robotic pick-and-place systems, vacuum switches ensure parts are held securely before any movement begins.
In the food and beverage industry, vacuum packaging is critical. These switches ensure seals are perfect and no contamination occurs. In the pharmaceutical world, vacuum drying and containment systems rely on precise vacuum control. One wrong switch reading here, and the entire batch could be compromised.
Even automotive manufacturing uses them—for example, in brake boosters or emission control systems. HVAC and energy sectors also use them in vacuum-insulated panels and heat pump systems.
Medical applications? Absolutely. Surgical suction systems, autoclaves, and vacuum-assisted wound closures all depend on these tiny switches. Wherever there’s vacuum, there’s a switch keeping things in check.
Conclusion
A vacuum pressure switch operates in negative pressure environments—where pressure is below atmospheric level. These are essential in suction systems, vacuum pumps, and medical equipment. Unlike regular switches, vacuum switches trigger when pressure drops, not rises. They’re used to detect leaks, monitor suction force, or protect vacuum pumps from running dry. Adjusting the vacuum setpoint accurately ensures timely switching. In packaging lines or robotics, they help verify proper sealing or pick-and-place suction. Choosing the right range and diaphragm material (like silicone or Viton) is vital for durability. Even though they work under “nothingness,” these switches play a major role in protecting everything. In the vacuum world, they’re a reliable guardrail.
