Key Takeaway
Gauge pressure is the pressure measured relative to atmospheric pressure. It excludes the ambient atmospheric pressure and represents only the additional pressure exerted by a fluid in a system. Most mechanical pressure gauges display gauge pressure because they are calibrated to show zero when open to the atmosphere. For example, a tire pressure of 32 psi means it’s 32 psi above atmospheric pressure. To convert it to absolute pressure, you add atmospheric pressure (~14.7 psi at sea level). Gauge pressure is widely used in industrial applications because it reflects the working pressure that equipment actually experiences under normal operating conditions.
Definition and Comparison with Absolute Pressure
Gauge pressure measures pressure relative to atmospheric pressure. This is what most standard pressure gauges show. For example, a gauge showing 0 PSI means the internal pressure equals the surrounding air pressure.
Absolute pressure, on the other hand, includes atmospheric pressure. It is measured from a perfect vacuum. So if atmospheric pressure is 1 bar and your gauge reads 2 bar, the absolute pressure is 3 bar.
Which one should you use? That depends. In vacuum systems or scientific applications, absolute pressure is critical. In industrial machines, gauge pressure is usually sufficient.
Understanding the difference is important during sensor selection and unit conversions. Many digital sensors allow toggling between absolute and gauge modes — make sure you know what you’re reading.
Applications Where Gauge Pressure Matters
Gauge pressure is used in most everyday and industrial settings — from inflating tires to running steam boilers. That’s because it measures pressure relative to atmospheric pressure, which is what most equipment is designed to handle.
Examples:
Boilers and HVAC systems use gauge pressure to maintain safety.
Hydraulic systems rely on it to regulate actuator motion.
Compressed air tools need stable gauge pressure to function properly.
Absolute pressure is important in scientific or vacuum systems, but for everything else — manufacturing, process control, utilities — gauge pressure is king.
Positive vs Negative (Vacuum) Gauge Pressure
Positive gauge pressure: Pressure above atmospheric (e.g., 2 barG)
Negative gauge pressure: Pressure below atmospheric (e.g., -500 mbarG or vacuum)
Most standard gauges are designed for positive pressure. Vacuum gauges or compound gauges are needed for negative ranges.
Vacuum pressure is critical in:
Leak detection
Packaging
Freeze drying
Suction systems
Always choose a gauge marked for vacuum or compound use. Installing a regular gauge on a vacuum line may damage the Bourdon tube or give no usable reading.
Measurement Tools for Gauge Pressure
Gauge pressure is pressure measured relative to atmospheric pressure. Common instruments include:

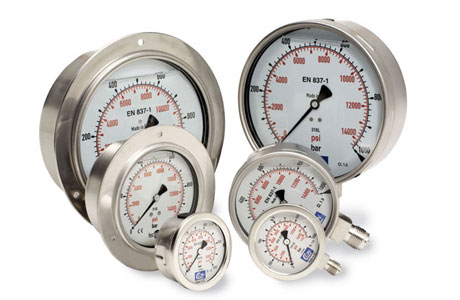

Mechanical gauges: Bourdon tube, diaphragm, capsule
Digital pressure gauges
Pressure transmitters with 4–20 mA output
Compound gauges (for pressure + vacuum)
U-tube or inclined manometers (for very low pressures)
Selection depends on:
Pressure range
Accuracy requirement
Process environment
Output/communication needs
Gauge pressure tools are used in nearly every industry, from water pumps and compressors to biomedical equipment and packaging.
Impact of Atmospheric Pressure on Gauge Readings
Atmospheric pressure changes every day due to weather and altitude. This variation can subtly impact gauge pressure readings — especially in sensitive or low-pressure applications.
Remember: Gauge pressure = Absolute pressure – Atmospheric pressure
So if the atmospheric pressure drops (like at higher altitudes or during a storm), the gauge reading for a sealed system may appear higher than expected — even though the actual internal pressure hasn’t changed.
For example, a tire inflated at sea level and then taken to a mountain might show a higher gauge reading due to the drop in ambient pressure.
In precision setups — like laboratories, gas chromatography, or aviation — absolute pressure readings are preferred to eliminate this variability. In HVAC or cleanroom applications, even minor shifts in barometric pressure can affect airflow control systems.
To correct this, some digital gauges include barometric compensation. Others require manual offset adjustments.
For routine industrial use, atmospheric pressure effects are minimal — but for sensitive systems, they’re a key factor in ensuring accurate control and safety.
Conclusion
Gauge pressure is used in most everyday and industrial applications because it measures pressure relative to atmospheric pressure. This means a reading of zero on your gauge usually reflects equal pressure with the atmosphere, simplifying interpretation. It’s used in tires, pumps, compressors, and process systems. Gauge pressure is practical because it tells you how much pressure is inside a vessel compared to what’s outside—where we live and work. It’s intuitive and sufficient for most engineering needs unless working in sealed, scientific, or altitude-sensitive systems where absolute pressure is needed. Its widespread use also means affordable instruments, standardized fittings, and easier training. For most, gauge pressure is the right tool for the job.
