Key Takeaway
PID stands for Proportional-Integral-Derivative control, and in Siemens PLCs, it is used for closed-loop control systems to maintain process variables like temperature, pressure, or speed at desired setpoints. Siemens PLCs offer built-in PID function blocks in TIA Portal, such as PID_Compact and PID_3Step. Engineers can tune the PID parameters manually or use the automatic tuning feature provided by Siemens. PID control is essential for maintaining stability and accuracy in industrial processes. Siemens PID blocks simplify integration, offering real-time control, auto-tuning options, alarm management, and graphical monitoring. With advanced PID instructions, S7-1200 and S7-1500 PLCs can handle multiple process loops with precision, improving efficiency, product quality, and operational safety across a wide range of industrial applications.
Introduction to PID Control in Industrial Automation
If you’re stepping into the world of industrial automation, one term you’ll hear often is PID—short for Proportional, Integral, Derivative control. It’s not just a fancy acronym; it’s the foundation of how precise processes are controlled in automation systems. And when it comes to PLCs, especially from Siemens, PID control becomes a core function in ensuring smooth and reliable operations.
Imagine trying to maintain a constant temperature in a heating system, or keeping the speed of a motor steady despite load changes. Manual control won’t cut it here. That’s where PID steps in. With PID logic, Siemens PLCs automatically adjust outputs based on sensor inputs to maintain desired setpoints.
It’s used across industries—from manufacturing and packaging to food processing and water treatment. PID control helps reduce error, enhance efficiency, and improve product consistency. For new engineers, mastering PID is a must-have skill in automation.

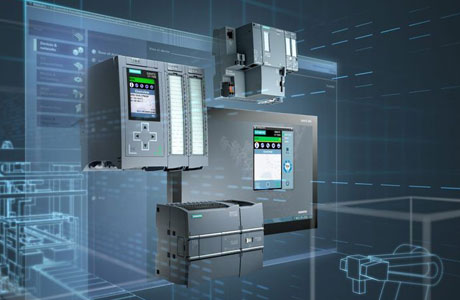

Where and Why PID is Used in Siemens PLCs
PID is the go-to logic in Siemens PLCs when we talk about process control. You’ll find it being used in applications where maintaining a specific value—like pressure, temperature, level, or flow—is critical.
Let’s say you’re working in a dairy plant. You need the milk to be pasteurized at exactly 72°C. A temperature sensor detects the current value. The Siemens PLC compares it to the target. If there’s a difference, the PID controller kicks in to adjust the heating element, keeping the temperature right where it needs to be.
Why is this important? Because even small deviations in industrial processes can lead to massive quality or safety issues. PID control ensures that your system constantly adjusts and balances itself—almost like an autopilot in an airplane. It improves stability, accuracy, and response time.
Whether it’s regulating a motor’s RPM or controlling the airflow in HVAC systems, PID in Siemens PLCs makes the process automatic and precise.
Tuning Parameters: Proportional, Integral, Derivative
PID control is only as good as its tuning. If you’re new to this, think of it like adjusting the bass, mid, and treble of a sound system. The three parts of PID—Proportional (P), Integral (I), and Derivative (D)—each play a role in how the system reacts to error.
Proportional: Reacts to the current error. The larger the error, the stronger the response.
Integral: Deals with accumulated past errors. It helps eliminate any leftover steady-state error.
Derivative: Predicts future error based on the rate of change. It helps dampen the response to prevent overshoot.
Tuning these values isn’t a one-size-fits-all approach. In Siemens PLCs, the TIA Portal software gives you built-in tools for adjusting PID parameters in real-time. You can graph responses and tweak each value while watching how the system reacts. That’s powerful.
As you gain experience, you’ll get a feel for how to fine-tune these settings for different processes. A slightly higher D value may work great for temperature but not for flow. Hands-on testing is the best way to master it.
Implementing PID Blocks in TIA Portal
Using TIA Portal to implement PID in Siemens PLCs is quite intuitive, especially with pre-configured PID blocks like PID Compact, PID Temp, or PID 3-Step. These function blocks are part of Siemens’ standard libraries and can be dragged and dropped into your ladder or function block diagram.
Here’s a quick step-by-step overview:
Drag a PID block into your program.
Link it with the process variable (e.g., temperature) and the setpoint.
Connect the output to the actuator (e.g., valve or heater).
Tune the PID parameters manually or let TIA Portal’s auto-tuning assist.
What makes TIA Portal great is its simulation environment. You don’t even need hardware to test your logic. The built-in trace and visualization tools help you monitor the real-time behavior of your PID loop.
For beginners, this is a goldmine. You can experiment safely, see what each parameter does, and get comfortable with PID control before applying it to a live system.
Troubleshooting Common PID Issues
Even seasoned engineers face challenges with PID control. One common issue is oscillation—where the system keeps bouncing around the setpoint. This often means the proportional gain is too high or the integral action is too aggressive.
Another issue? Overshoot. You want your system to reach the setpoint but not exceed it too much. In this case, reducing the integral component or adding derivative action can help.
Sometimes, you may see slow response. That’s when the system is too sluggish in reacting to changes. Increasing the proportional gain usually solves this.
What’s important here is to take a structured approach:
Observe the behavior using trend charts
Adjust one parameter at a time
Log the results and learn from each change
Siemens’ diagnostic tools in TIA Portal, like the PID Tuner and Online Monitoring, make troubleshooting much easier. With practice, you’ll know what knobs to turn for the exact behavior you want.
Conclusion
PID control in Siemens PLCs offers precise and dynamic process regulation, making it essential in today’s industrial automation landscape. From temperature and flow to speed and pressure control, PID helps ensure stable, efficient operations across countless applications.
For new engineers, understanding how to tune and troubleshoot PID loops is not just valuable—it’s a core skill. And with Siemens’ TIA Portal tools, implementing and refining PID control becomes an engaging and hands-on experience.
So the next time you hear about PID in a Siemens PLC, remember—it’s more than just a function block. It’s the brain behind some of the most reliable and intelligent automation systems in the world.
