Key Takeaway
STEP 7 is Siemens’ original software suite for programming, configuring, and diagnosing SIMATIC PLC systems.
STEP 7 Classic (V5.x) is used for older S7-300/S7-400 systems.
STEP 7 in TIA Portal supports modern systems like S7-1200 and S7-1500 while offering backward compatibility.
Functions include creating programs in LAD, FBD, STL, managing hardware configurations, setting up communication networks, and conducting diagnostics.
STEP 7 is critical for industrial automation as it standardizes project structures, promotes modularity, and simplifies maintenance.
Today, TIA Portal has integrated Step 7 to offer a more intuitive, flexible, and future-proof automation environment.
STEP 7 Classic vs TIA Portal Evolution
Siemens STEP 7 has undergone a significant evolution, transforming from the Classic version to the more advanced TIA Portal (Totally Integrated Automation Portal).
The STEP 7 Classic was the first of its kind and was widely used for programming Siemens PLCs for many years. It had a modular interface, where different tools had to be launched separately for tasks like programming, diagnostics, and hardware configuration. While powerful, it lacked integration across various Siemens automation products, which sometimes led to fragmented workflows.
Enter TIA Portal, which was introduced to simplify and streamline the process. TIA Portal integrates all components into one platform, reducing complexity and improving efficiency for the user. It provides a single interface for designing control systems, from PLC programming to HMI configuration. This allows for seamless diagnostics and troubleshooting, making TIA Portal an essential tool for modern automation tasks.
In summary, while STEP 7 Classic served its purpose in the early stages of industrial automation, TIA Portal is the future, offering a more user-friendly, integrated, and flexible environment for all your automation needs.
Supported PLC Models (S7-300, S7-400, etc.)
STEP 7 is compatible with a wide range of Siemens PLC models. The S7-300 and S7-400 are the most widely used series, each offering unique capabilities suited to various industrial needs.
The S7-300 is designed for small to medium-sized applications and is known for its robustness, flexibility, and scalability. It supports a variety of modules, allowing engineers to tailor solutions based on the complexity of the task at hand. With STEP 7 Classic and TIA Portal, you can easily program and maintain S7-300 systems, making it an ideal choice for many industrial environments.

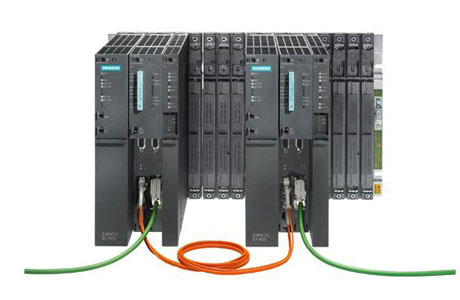

On the other hand, the S7-400 is designed for more demanding, complex applications. It is commonly used in large-scale automation projects, like factory automation, water treatment, and energy management systems. With its powerful processing capabilities and wide support for high-speed communication, the S7-400 is a reliable choice for industries that require high performance and uptime.
Moreover, with the integration of TIA Portal, the transition between different models has become more seamless. The Portal allows for efficient configuration, diagnostics, and troubleshooting across both the S7-300 and S7-400 systems, providing a cohesive experience for engineers.
Key Features for Programming and Diagnostics
STEP 7 offers a variety of tools to make PLC programming and diagnostics easier and more efficient.
For programming, STEP 7 provides a powerful development environment that supports various programming languages such as Ladder Logic (LAD), Function Block Diagram (FBD), and Structured Text (ST). These languages are used to program the logic that controls industrial processes, and STEP 7’s flexibility allows you to choose the one that best suits the application at hand.
In addition, STEP 7 integrates diagnostic tools that can pinpoint issues within the PLC or connected devices. This capability is particularly valuable in preventing downtime and reducing troubleshooting time. With the built-in diagnostic functions, users can quickly identify faulty components, connection issues, or software bugs, ensuring a smoother operation of industrial systems.
Moreover, TIA Portal enhances the diagnostic capabilities by offering real-time monitoring, easy-to-read error logs, and seamless integration with Siemens’ other automation products, making it an indispensable tool in modern industrial environments.
Licensing and Version Compatibility
When it comes to licensing, STEP 7 operates on a software-based license model. This means users must purchase licenses for different versions and functionalities. Siemens offers various licensing options for both STEP 7 Classic and TIA Portal. It’s crucial to choose the correct version based on the PLC models you’re using and the features you require.
For STEP 7 Classic, the licensing is often tied to the hardware, meaning the software will only work with specific PLC models. On the other hand, TIA Portal provides more flexibility, with different packages that can be tailored to suit the project size and scope. This model gives engineers more freedom in managing licenses across multiple systems.
Furthermore, while STEP 7 Classic and TIA Portal are compatible with many versions of Siemens PLCs, it’s important to note that not all older PLC models support the newer versions of TIA Portal. In some cases, you may need to use STEP 7 Classic to maintain compatibility with older hardware like the S7-300 or S7-400.
It’s always recommended to check the compatibility of your specific PLC model with the version of STEP 7 you are using, ensuring that you can fully utilize the tools and features available to you.
Real-World Use Cases in Industrial Automation
STEP 7’s versatility has made it a popular choice in a variety of industrial sectors. Whether you are working in automotive, manufacturing, energy, or infrastructure, STEP 7 is the tool that controls the backbone of many industrial processes.
In the automotive industry, for instance, STEP 7 is used to control robotic arms and assembly lines. Its programming capabilities allow for high precision and real-time control, ensuring that parts are assembled in the correct sequence and quality standards are maintained.
Similarly, in energy management, STEP 7 is used to monitor and control the flow of electricity in power plants. The ability to program complex control systems with STEP 7 ensures that power generation and distribution processes are carried out without interruption.
Additionally, STEP 7 is heavily used in water treatment plants to regulate the flow of water and chemicals, monitor sensor data, and control valves and pumps. In these environments, reliability and accuracy are critical, and STEP 7’s diagnostic and monitoring capabilities provide real-time insights into system performance.
These real-world applications highlight the adaptability and reliability of STEP 7 across various industries, proving its value in ensuring operational efficiency and uptime.
Conclusion
STEP 7, whether in its Classic or TIA Portal form, remains a fundamental tool for Siemens PLC programming. From automating industrial processes to controlling complex machinery, it serves as the heart of industrial automation, offering powerful logic development and diagnostics. Whether you’re using the S7-300 for smaller-scale systems or the robust S7-400 for large-scale applications, STEP 7 is designed to provide flexibility, reliability, and ease of use. As industrial automation continues to evolve, STEP 7 remains a core component of Siemens’ commitment to providing high-quality, efficient automation solutions.
This knowledge will empower you as a newly joined engineer, making your path through automation more structured and productive. Step into the world of industrial automation with STEP 7 and start building the future of manufacturing today!
