Key Takeaway

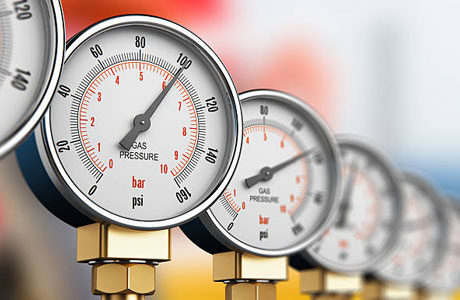

A pressure gauge is a simple tool used to display the current pressure in a system. It usually has a dial or digital screen showing the pressure value in units like bar, psi, or Pa. It helps people visually check if the pressure is normal, too low, or too high. It does not control anything — it only shows the pressure.
A pressure switch, on the other hand, is used to control equipment. It works like an automatic switch. When the pressure goes above or below a set point, the switch turns a device ON or OFF. It doesn’t show pressure; it reacts to it.
So the main difference is:
Gauge = Shows the pressure (manual reading)
Switch = Controls machines based on pressure (automatic action)
Both are useful: the gauge is for monitoring, and the switch is for safety or automatic control.
Visual Display vs. Automated Response
A pressure gauge gives you a visual indication of system pressure. It’s passive—you look at it and decide if action is needed. A pressure switch, however, provides an automated response. It actively reacts when pressure crosses a limit, switching devices ON or OFF without human input. Visual displays are useful for manual inspections and diagnostics, especially in systems where regular monitoring is feasible. Automated switches are critical in unattended or fast-acting systems like pumps, compressors, or alarm circuits. In some designs, both are used together—gauges for visibility, switches for control. Choosing between them depends on your system’s need for automation, safety, or visual feedback.
Role in Monitoring vs. Controlling Pressure
Let’s say you’re monitoring a steam boiler. The pressure gauge shows you it’s currently at 6 bar. That’s good to know. But what if it crosses 10 bar, and you’re away having tea?
That’s where the pressure switch steps in.
Pressure gauges are essential for monitoring. Operators use them during inspections, system startups, and troubleshooting. They give a real-time status. But they don’t do anything unless someone sees the reading and takes action.
Pressure switches, on the other hand, are all about control. They’re wired into systems – pumps, compressors, alarms. If pressure hits a danger point, the switch cuts off power or triggers an alert.
Think of a compressor system. A gauge tells you, “We’re at 5 bar.” A switch says, “We’ve hit 7 bar. Time to shut off.”
Gauges are eyes. Switches are hands.
In many applications, both work together. The gauge helps operators track the trend. The switch ensures the system doesn’t exceed safe limits.
Remember: monitoring helps humans decide. Controlling ensures machines act – fast.
Mechanical vs. Electrical Operation
A pressure gauge works mechanically. It typically uses a Bourdon tube – a curved metal tube that straightens as pressure increases. This mechanical motion moves the needle on the dial. No power needed.
That’s why gauges are reliable even during power cuts. They’re simple, direct, and robust.
Now, pressure switches combine mechanical sensing with electrical output.
Inside a switch, pressure might move a diaphragm or piston. When it hits a preset point, this motion trips an electrical contact. That contact completes or breaks a circuit, sending signals to control systems.
You set the actuation point – say 6 bar ON and 4 bar OFF. The switch remembers. It clicks like a mini robot, doing its job silently.
Because of the electrical part, pressure switches can be connected to relays, PLCs, alarms, or even full SCADA systems.
So, if your application needs just measurement – go with mechanical gauges. If it needs automated response – you’ll need the hybrid mechanical-electrical brilliance of a switch.
Maintenance and Calibration Needs
Pressure gauges are low-maintenance, but not maintenance-free.
Over time, vibration, overpressure, or dirt can affect the internal mechanism. You might notice a needle that’s stuck or off zero. That’s your cue to recalibrate or replace.
Still, since gauges are mechanical, they’re easy to inspect. No wiring. No electronics. Just take a look, compare to a known standard, and adjust if needed.
Pressure switches need more attention.
Because they include both mechanical parts and electrical contacts, they’re subject to wear on both fronts.
Contacts can get corroded. Diaphragms can stiffen with age. If the switch is part of a safety loop, you must test it periodically.
Many industries – food, pharma, petrochemicals – follow strict calibration schedules. Why? Because even a small drift in switch point can lead to massive process deviations.
Industrial Scenarios for Gauges vs. Switches
Scenario 1: Water Pump System
Pressure Gauge: Tells the technician the line pressure is 3.5 bar.
Pressure Switch: Automatically starts the pump if pressure drops below 2.0 bar, and stops it at 4.0 bar.
Scenario 2: Air Compressor in a Workshop
Gauge: Shows tank pressure.
Switch: Stops the compressor at max pressure and restarts at lower threshold.
Scenario 3: Boiler in a Food Processing Plant
Gauge: Lets operators see real-time pressure before startup.
Switch: Triggers an alarm or shuts down boiler at unsafe pressure levels.
Each setup uses both tools – one for human monitoring, the other for machine control.
Also, consider environmental factors.
In dusty or high-vibration zones, analog gauges may wear faster. Switches enclosed in sealed housings survive better.
Digital systems? Some plants replace gauges and switches with sensors feeding into PLCs. But for small setups or backup systems, the humble gauge and switch still dominate.
Gauges are your eyes on the field. Switches are your safety nets.
Conclusion
A pressure gauge gives a live, visual indication of the pressure inside a system, allowing technicians to monitor the condition manually. On the other hand, a pressure switch automates action by responding to specific pressure levels—turning devices on or off based on thresholds. Gauges are ideal when regular inspection is part of operations, like in maintenance rooms or field service checks. Pressure switches are more critical in automated environments, such as pumping systems or manufacturing lines, where instant response to pressure changes is necessary. Knowing when to use each tool is vital: for example, using a gauge alone in a system that requires shutdown at high pressure is risky. Likewise, relying on switches without visual indicators may limit insight into how a system is performing over time. Both tools serve distinct but complementary roles in pressure management. Smart engineers know how to pair them effectively for both visibility and action.
