Key Takeaway
The processing speed of the S7-1200 PLC varies by CPU model and firmware version but typically operates around 0.1 microseconds per bit operation. Complex instructions such as math functions or communication operations require slightly longer processing times. Overall, S7-1200 CPUs offer cycle times fast enough to handle most real-time control applications, including basic motion control and rapid signal processing. CPU 1215C and 1217C models offer higher performance compared to the entry-level 1211C. Processing speed ensures that inputs are quickly scanned, logic is executed, and outputs are updated rapidly, maintaining system stability and responsiveness in automation tasks like machine operation, packaging, and material handling.
Scan Cycle Time and Instruction Execution Rates
The scan cycle is the heartbeat of a PLC. It consists of reading inputs, executing logic, and updating outputs. For the S7-1200, the average scan cycle time ranges between 0.1 to 0.5 milliseconds, depending on program complexity.
Instruction execution speed is another key metric. For example:
A simple bit logic instruction (like AND, OR) typically takes around 60 ns (nanoseconds).
Word operations take slightly longer.
More complex instructions like floating point calculations or PID controls can go up to several microseconds.
That’s fast enough to control conveyors, motors, valves, and sensors in real-time industrial systems without missing a beat.
Factors That Affect PLC Processing Speed
Not all S7-1200 setups run at the same speed. Several factors can affect how fast your PLC actually performs:
Program Size: Larger programs take longer to execute.
Data Handling: Complex data types, string operations, or array processing require more time.
Use of Libraries and FBs: Standard Function Blocks are handy but can slow down execution.
Interrupts and High-Speed Inputs: These features are powerful but also eat up processing time.
Choosing the right CPU model within the S7-1200 series (like CPU 1211C, 1212C, 1214C, etc.) also impacts performance. The higher-end models have faster processors and more memory.

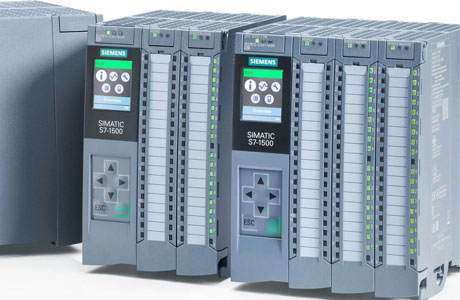

Comparing Processing Time with S7-1500 and S7-300
Let’s say you’re trying to pick between the S7-1200, S7-1500, or even an older S7-300. How do they stack up?
S7-300: Still used widely, but the processing speed is significantly slower. Think of it as the old reliable—but aging.
S7-1200: Great for mid-range applications. Faster than S7-300, more modern, and cost-efficient.
S7-1500: The fastest of the three. Ideal for high-speed, data-intensive tasks like robotics or multi-axis control.
So if your project doesn’t demand microsecond-level precision and you’re cost-conscious, the S7-1200 hits the sweet spot.
Impact of Speed on Real-Time Applications
When you’re working with real-time systems, processing speed isn’t just a number—it’s the make-or-break factor. Think about applications like:
Bottle-filling machines that need millisecond-level precision.
Motor speed control based on rapid feedback.
Synchronizing multiple sensors in a conveyor system.
The S7-1200 handles most of these with ease. It supports deterministic behavior, meaning it can execute instructions in predictable time frames, which is essential in automation.
Optimizing Program Logic for Faster Execution
Here’s where your skills as an engineer truly shine. No matter how fast the PLC is, poorly written logic can slow things down. Here’s what you can do:
Avoid Unnecessary Loops: Keep FOR and WHILE loops efficient.
Use Indexed Arrays Carefully: Don’t process massive arrays each cycle unless needed.
Split Programs: Break large logic chunks into smaller, manageable blocks.
Use OBs Effectively: Organizational Blocks can manage scan times better.
Profile Your Code: Use Siemens TIA Portal’s diagnostic tools to identify bottlenecks.
Conclusion
The Siemens S7-1200 PLC delivers reliable scan times, quick instruction execution, and the flexibility to handle a wide range of industrial tasks. It’s not the fastest in Siemens’ lineup—but for most automation scenarios, it’s more than enough. With smart programming and thoughtful system design, you can squeeze top-notch performance out of it.
Whether you’re automating a packaging line, building control panels, or managing process inputs and outputs, the S7-1200 won’t let you down. It’s a modern, compact, and capable workhorse trusted by engineers around the world.
