Key Takeaway
A vacuum pressure gauge measures pressures below atmospheric pressure. It is used in applications where a vacuum is created, such as vacuum pumps, packaging machines, freeze-dryers, and laboratory systems. The purpose of the gauge is to monitor and maintain the desired vacuum level to ensure process efficiency and safety. Vacuum gauges may be analog (like Bourdon tube or diaphragm) or digital, and units include inches of mercury (inHg), Torr, or Pascal. Maintaining proper vacuum levels is critical in semiconductor manufacturing, pharmaceutical production, and refrigeration systems. These gauges help detect leaks and ensure that vacuum-dependent processes run smoothly.

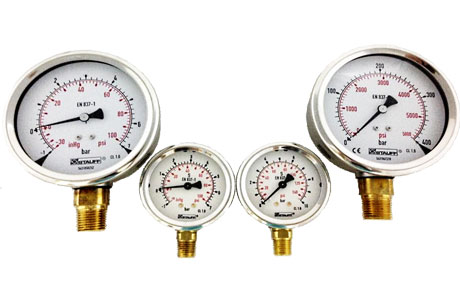

Measuring Pressures Below Atmospheric Levels
Measuring vacuum or sub-atmospheric pressure requires special instruments. Regular gauge pressure devices start at zero — meaning atmospheric pressure. But when pressure drops below that, you need compound gauges or vacuum gauges.
Compound gauges measure both pressure and vacuum — often marked with a “0” in the center, pressure on one side, vacuum on the other. Vacuum gauges measure in units like mmHg, Torr, or mbar.
Common applications include refrigeration systems, vacuum pumps, and scientific experiments. Precision is key — even a few mbar can affect the outcome. Always use the right scale, and never use a standard pressure gauge for vacuum measurement.
Types of Vacuum Gauges (Mechanical and Electronic)
Vacuum gauges come in various types depending on the vacuum level:
Mechanical Types:
Bourdon Tube (low vacuum)
Diaphragm Gauges
U-Tube Manometers
Electronic Types:
Pirani Gauge: Measures thermal conductivity of gases at low pressure
Ionization Gauge: For ultra-high vacuum (~10⁻⁹ Torr)
Capacitance Manometer: Very accurate in mid to high vacuum
Each type covers a specific vacuum range. For example, a Bourdon tube may go down to -1 bar (gauge), while a Pirani gauge is used for deep vacuum systems in semiconductor or laboratory setups. Choose based on your vacuum level, measurement accuracy, and system type.
Use Cases in Labs, HVAC, and Packaging
Pressure instruments serve a range of roles:
Labs: Vacuum experiments, gas regulation, precision dosing
HVAC: Filter status, duct balancing, refrigerant charging
Packaging: Air and nitrogen pressure control for sealing or inflating
In each case, the type of pressure (gauge, differential, or vacuum) and the required accuracy define the instrument choice.
Portable digital gauges are often preferred in labs. Analog compound gauges are common in HVAC. Pressure switches or transmitters ensure consistent control in high-speed packaging systems.
Vacuum vs Compound Pressure Gauges
Vacuum gauges: Measure below atmospheric pressure (e.g., -1 to 0 bar)
Compound gauges: Measure both pressure and vacuum (e.g., -1 to +6 bar)
Applications:
Vacuum gauges: Leak detection, packaging machines
Compound gauges: Refrigerant charging, suction lines, pneumatic tanks
Compound gauges save space and simplify diagnostics when both positive and negative pressures may occur. Always match gauge type to the system’s expected range to avoid pointer damage or misreadings.
How to Maintain Accuracy in Vacuum Measurements
Vacuum gauges, especially those used in sensitive processes, need special care to maintain accuracy.
Common vacuum gauges:
Bourdon tube (low vac)
Pirani (medium vac)
Ionization (high vac)
Capacitance diaphragm (precise)
Tips for maintaining vacuum accuracy:
Always zero the gauge before use — even minor offsets affect low-pressure readings.
Clean sensor ports regularly to remove oil vapor or particulate buildup.
Avoid exposing vacuum gauges to high pressures — they’re designed for low-pressure environments and may be damaged.
Use vacuum-rated sealants and fittings to prevent leaks.
Store gauges in dry, clean conditions when not in use.
Also, temperature plays a big role — vacuum gauges should be used in stable environments or compensated for temperature drift.
Inaccurate vacuum readings can ruin batches, damage equipment, or compromise safety — especially in semiconductor, pharma, and food packaging industries.
Conclusion
Vacuum pressure gauges are used to monitor pressure below atmospheric levels—essential in applications like HVAC systems, vacuum packaging, cleanrooms, and scientific labs. Unlike standard pressure gauges, they’re designed to read pressures approaching absolute zero. These gauges help ensure safe operations in systems that rely on suction, vacuum pumps, or sealed containers. Even slight deviations in vacuum pressure can lead to performance loss, contamination, or failure. By selecting the right vacuum gauge—mechanical, digital, or compound—you gain accurate visibility into negative pressure conditions. These tools also assist in diagnosing leaks, validating system performance, and ensuring compliance in regulated environments. In short, vacuum pressure gauges are critical wherever negative pressure must be controlled.
