Key Takeaway
Pressure switches are rated based on the pressure they can detect or control. The most common units of pressure are psi (pounds per square inch), bar, and Pa (Pascal). In household and industrial systems, psi and bar are most widely used. 1 bar is approximately equal to 14.5 psi. In some high-precision applications, kPa (kilopascal) or MPa (megapascal) may be used. The unit printed on the switch label tells you what range it operates in — for example, a switch rated 30–50 psi means it turns ON at 30 psi and OFF at 50 psi. Always choose a switch that matches the unit and range of your system. Using the wrong pressure unit can cause poor performance or even system damage. If your system is in psi, don’t use a bar-calibrated switch unless you’re sure about the conversion. Always check the rating before installing or adjusting a pressure switch.
PSI: Pounds per Square Inch Explained
PSI (Pounds per Square Inch) is one of the most common units for measuring pressure in industrial systems. It indicates how much force is applied to a surface area of one square inch. For instance, 30 PSI means 30 pounds of force per square inch. Pressure switches often use PSI as the standard, especially in North America. Knowing how to convert PSI to other units like bar (1 bar ≈ 14.5 PSI) or MPa (1 MPa ≈ 145 PSI) is useful when working with international equipment. Understanding PSI helps you correctly set switch points, calibrate systems, and compare specifications across products from different manufacturers.
Bar and MPa in Industrial Applications
In most international and modern industrial setups, you’ll often encounter pressure units like Bar and MPa (Megapascal).
1 Bar = 100,000 Pascals = roughly 14.5 PSI
1 MPa = 1,000,000 Pascals = roughly 145 PSI
Simple conversions, but they matter a lot.
European equipment and industries usually refer to pressure in Bar. For example, a boiler system might trigger an alarm when the pressure exceeds 6 Bar.
Japanese or high-end automation systems (like robotic arms or precision hydraulic presses) often use MPa. A pressure switch in this context might cut power at 0.5 MPa to avoid overloading delicate components.
These units are SI (International System) standards and are considered more modern and universal.
Unit Selection Based on Region or Standard
Why do we have so many units for the same thing? That’s a common question. And the answer lies in region, history, and industry standards.
In the US, most systems and switches are still designed around PSI, because it’s embedded in American industrial history.
In Europe and Asia, Bar and MPa are the go-to units because of international and ISO standards.
A new engineer must adapt to the region they’re working in. If you’re working with European machinery in India, chances are you’ll see Bar. If you’re dealing with older US imports, PSI might still pop up.
Big Mistake to Avoid: Never assume a pressure value without confirming the unit. Reading 10 Bar as 10 PSI? That’s a disaster waiting to happen.
Always refer to the data label or manual and double-check.
Also, when selecting a pressure switch, match the unit to your control system or monitoring devices. If your control panel shows pressure in MPa, don’t buy a switch calibrated only in PSI.
Interpreting Scales on Labels and Gauges
Here’s where real-world experience kicks in.

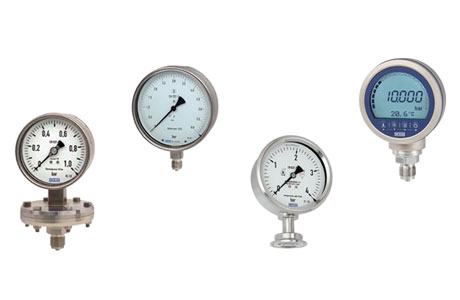

Look at any industrial pressure switch or gauge, and you’ll see scales or ranges. Sometimes there’s a single scale in PSI or Bar. Other times, you’ll find dual scales, like:
Outer ring: PSI
Inner ring: Bar
Don’t panic. Just identify which one your system uses.
Digital pressure switches usually let you select the unit from the menu. But analog types? You have to read the scale correctly.
Let’s say you have a gauge that shows both PSI and Bar, and the needle is pointing at 150. Which one do you read?
That depends on the outer label and what your system expects.
Best Practice: Always label your system or HMI interface clearly. Add a sticker that says “Read in Bar only” or “System pressure in MPa.” It eliminates guesswork, especially when multiple people operate the equipment.
One more thing—calibration tags. When you recalibrate a pressure switch, ensure the unit of measurement is noted on the tag. Maintenance teams will thank you.
Importance of Unit Consistency in System Design
This is where engineering turns into safety.
When building or maintaining a control system, unit consistency across all components is critical. Imagine this:
Your sensor reads in MPa
Your controller is set for PSI
Your pressure switch is in Bar
Chaos.
Signals will be misread. Alarms will go off unnecessarily—or worse, not at all. Valves may open or close at the wrong pressure. Pumps could fail.
That’s why most engineering teams maintain unit uniformity from start to finish.
If you’re installing a new switch, always match it with the unit standard used by:
The PLC or control panel
The sensor or transmitter
The HMI display
Any alarms or safety interlocks
Golden Rule: Keep your units aligned, and clearly document them in your wiring diagrams and control logic.
Want to be a top-tier engineer? Never ignore units. They’re not just numbers—they’re system-wide signals. A mismatch can lead to failure, downtime, or even injury.
Conclusion
Pressure switches operate across different units like PSI, bar, and MPa—each used in different industries and regions. A mismatch in units during setup can lead to incorrect adjustments or equipment failure. Always double-check the unit mentioned on the pressure switch label and compare it with your system’s specifications. For example, 1 bar equals approximately 14.5 PSI. Understanding and converting units properly is essential for accurate settings and safe performance. If you’re importing or exporting equipment, be extra cautious—international standards may differ. Pressure unit confusion is a common but avoidable mistake. Using the right pressure language ensures consistency, reduces errors, and improves maintenance clarity. It’s a simple detail, but one that can prevent serious mishaps.
