Key Takeaway
The S7-1500 PLC supports several IEC 61131-3 standard programming languages, including:
LAD (Ladder Logic Diagram)
FBD (Function Block Diagram)
STL (Statement List)
SCL (Structured Control Language) — similar to high-level languages like Pascal
GRAPH — for sequential function charts
Advanced object-oriented programming (OOP) is also supported, enabling modular, reusable program structures. Engineers can mix languages within a project based on task requirements. LAD and FBD are graphical and widely used for easy visualization. STL offers detailed, low-level control, while SCL suits complex calculations and structured programming. Programming is done through TIA Portal, offering user-friendly editors, powerful simulation tools, and comprehensive diagnostics during development.
IEC 61131-3 Languages Supported

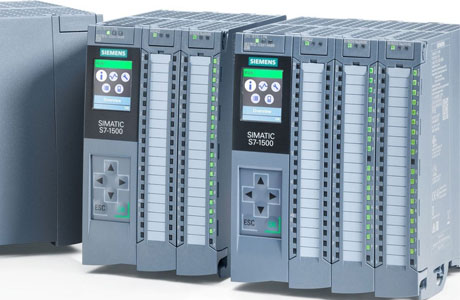

When you start working with the Siemens S7-1500 series PLCs, the first thing to know is that it doesn’t lock you into one single way of programming. Instead, it gives you multiple options—thanks to the support of IEC 61131-3 standard languages. This standard is the backbone of PLC programming and defines five major languages. Siemens supports all of them in the S7-1500 environment through the TIA Portal: Ladder Diagram (LAD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC).
However, in real-world usage, the most popular ones are LAD, FBD, and ST. Siemens has moved away from Instruction List in recent years, as it’s considered outdated and not supported in newer environments. So, when you’re working in TIA Portal, you’ll mostly toggle between these three powerful languages depending on your task. Each has its strengths, and the beauty is—you don’t have to be stuck with just one.
Structured Text for Complex Logic
Let’s say you’re dealing with loops, conditions, or nested IF-ELSE statements. In this case, Structured Text (ST) is your best friend. It looks and feels like a high-level language such as Pascal or even Python. For engineers coming from a software background or those who enjoy working with textual code, ST is a blessing.
It allows you to handle complex algorithms, mathematical calculations, and advanced data manipulation very efficiently. You can write compact logic that would take dozens of rungs in Ladder to accomplish. It’s especially useful for motion control, batching, and process automation where logic goes beyond simple ON/OFF conditions.
And yes—it’s very readable, maintainable, and scalable. You can easily comment, reuse code blocks, and create structured programs that make debugging much easier in large projects. New engineers quickly adapt to it once they realize how logical and organized it feels.
Ladder Diagram for Control Engineers
Now, if you come from a traditional industrial automation background, Ladder Diagram (LAD) might feel like home. This language was built to resemble relay logic. It’s graphical, it’s visual, and it works fantastically when your main job is to control motors, sensors, solenoids, or simple interlocks.
Every rung in the Ladder tells a story. It’s easy to troubleshoot, especially on the shop floor. Electricians and maintenance teams love LAD because you don’t need to dig through lines of code—you can just “see” the logic in front of you.
Even for beginners, Ladder Diagram is very intuitive. You drag and drop contacts, coils, and timers—just like how physical circuits used to be wired. For tasks like safety interlocks, signal monitoring, and emergency handling, LAD is still the go-to choice in many industries.
Function Block Diagram and SCL Use
Function Block Diagram (FBD) is another visual language that’s quite popular in the S7-1500 series. Think of it like flowcharts for control logic. It’s great for repetitive, modular logic where you can define a function block once and reuse it multiple times.
FBD excels in analog signal processing, PID loops, and signal scaling. It allows you to link multiple logic elements in a clean and compact way. The readability is high, and it’s easy to visualize data flow across the system. Engineers working in HVAC, water treatment, and process control find FBD extremely useful.
Now, you might hear about SCL (Structured Control Language) as well. It’s essentially the same as Structured Text but tuned for Siemens platforms. Think of it as the power-user version of ST—optimized for Siemens’ internal workings, giving you deeper access to system functions.
If you’re planning to build libraries, reusable code structures, or handle large-scale industrial projects, knowing SCL is a big plus.
Language Selection Best Practices Based on Task Type
Here’s where many new engineers ask—”Which language should I use?” The answer: it depends on your task type and your team’s comfort zone.
For machine logic and interlocks, use LAD.
For math-heavy operations and algorithms, go for ST or SCL.
For signal flows and modular logic, FBD shines.
For large-scale systems with reusable components, mix ST/SCL with FBD.
Also consider your audience. If your logic needs to be understood by electricians or technicians for troubleshooting, Ladder is the way to go. But if the system will be maintained by software-savvy engineers, ST might be better in the long run.
The S7-1500 allows hybrid programming too. You can use multiple languages within the same project, assigning each to a specific function block. That’s what makes this platform incredibly flexible.
Conclusion
To sum it up—Siemens S7-1500 PLCs support multiple IEC 61131-3 languages like LAD, ST, and FBD, empowering engineers to build logic that fits both the application and the team’s expertise. Whether you’re writing complex calculations in Structured Text or setting up interlocks in Ladder, the system is designed to help you succeed.
Start with what you’re most comfortable with, and gradually explore the others. That’s the real beauty of working with Siemens: it gives you the tools and freedom to think like an engineer—and solve problems your way.
