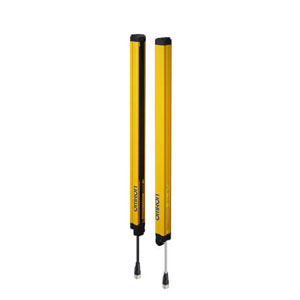

F3SJ-A0870P30: Omron 870mm Presence Detection Light Curtain
Technical Specifications of Omron 870mm Presence Detection Light Curtain F3SJ-A0870P30
| Spec | Value |
|---|---|
| Application | Hand/arm protection |
| Sensing Object | 30 mm dia. |
| Protective Height | 870 mm |
| Output | PNP |
Omron 870mm Presence Detection Light Curtain F3SJ-A0870P30 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand/arm protection |
| Detection capability | Opaque objects |
| Sensing Object | 30 mm dia. |
| Beam Gap | 25 mm |
| Number of Beams | 35 Beams |
| Protective Height | 870 mm |
| Output | PNP |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 9 m |
| Response time (Normal mode) ON→OFF | 12 ms |
| Response time (Normal mode) OFF→ON | 48 ms |
| Light source | Infrared LED (870 nm) |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 68 mA max.; Emitter: 76 mA max. |
| Degree of Protection | IP65 (IEC 60529) |
| Net Weight | Main Unit: Approx. 1.4 kg Package: Approx. 2.8 kg |
Ask for the Pricing of Omron 870mm Presence Detection Light Curtain F3SJ-A0870P30 at unbeatable prices. Detailed Specifications of F3SJ-A0870P30 features Opaque objects, Hand/arm protection, 870 mm protective height, 30 mm dia. & 25 mm beam gap, 35 Beams, 5 mm lens diameter, PNP Output, 24 VDC±20% Ripple 10% max. power supply, Receiver: 68 mA max.; Emitter: 76 mA max. Current Consumption, 0.2 to 9 m Operating range, Infrared LED (870 nm) light source. Now's the Time to Secure a Quote for your requirement of Omron 870mm Presence Detection Light Curtain. We're committed to offering more favorable pricing and more responsive support than other Traders.
