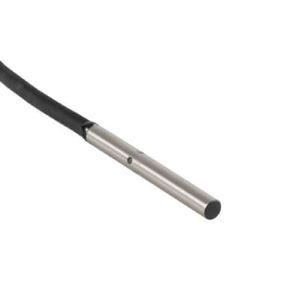

E2E-C03SR8-WC-B1 2M: Omron Proximity Sensor PNP NO
The technical specifications of Omron E2E C03SR8 WC B1 2M:
Size: 3 dia.
Installation: Flush
Sensing Distance: 0.8 mm
Connection: PVC Pre-Wired
Output: PNP
Switching Function: NO
Cable Length: 2 m
Omron E2E-C03SR8-WC-B1 2M Technical Specifications:
| Shape | Cylindrical | |
| Sensor Head (Dia) | 3 dia. | |
| Sensing Distance | 0.8 mm ±10% | |
| Setting Distance | 0 to 0.56 mm | |
| Installation | Shielded | |
| Output type | PNP | |
| Power Source | DC 3-wire | |
| Connection method | PVC Pre-wired models | |
| Operation mode | NO (Normally Open) | |
| Cable Length | 2 m | |
| Cable specifications | PVC (oil-resistant) | |
| Overall Length | 27 mm | |
| Differential travel | 15% max. of sensing distance | |
| Standard sensing object | Iron 3 x 3 x 1 mm | |
| Response frequency | 5 kHz | |
| Power supply voltage | 10 to 30 VDC | |
| Detectable object | Ferrous metal | |
| Indicator | Operation indicator (yellow) | |
| Current Consumption | 10 mA max | |
| Degree of protection (IP) | IP67 | |
| Material Case | Stainless steel | |
| Material Sensing Surface | ABS | |
