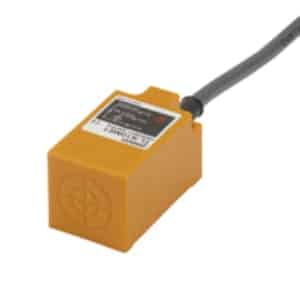

Omron TL-Q5MC1 2M: NPN Proximity Switch
The technical specifications of Omron TL Q5MC1 2M:
Shape: Square type
Installation: Non-Flush
Sensing Distance: 5 mm
Connection: Pre-wired Models
Output: DC 3-wire, NPN
Switching Function: NO
Cable Length: 2M
Omron TL-Q5MC1 2M Technical Specifications:
Shape | Square type | |
Sensor head size | 17 mm x 17 mm x 28 mm | |
Sensing Distance | 5 mm ±10% | |
Setting Distance | 0 to 4 mm | |
Installation | Unshielded | |
Output type | NPN | |
Power Source | DC 3-wire | |
Connection method | Pre-wired models | |
Operation mode | NO (Normally Open) | |
Cable Length | 2 m | |
Differential travel | 15% max. of sensing distance | |
Standard sensing object | Iron 15 x 15 x 1 mm | |
Response frequency | 500 Hz | |
Power supply voltage | 12 to 24 VDC | |
Detectable object | Ferrous metal | |
Indicator | Detection indicator (red) | |
Degree of protection (IP) | IP67 | |
Material Sensing Surface | ABS |
