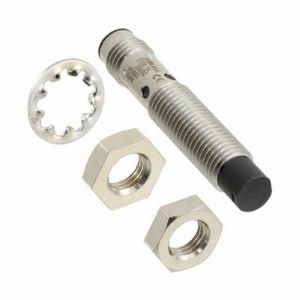

Omron E2B-S08KN04-MC-B2: 4mm, PNP, NC, Non-Flush
The technical specifications for the Omron E2B-S08KN04-MC-B2:
Size: M8
Mounting Type: Non-Flush
Sensing Distance: 4 mm
Output Type: PNP
Operation Mode: Normally Closed (NC)
Connection Method: Connector M8 – 3 pin
Omron E2B-S08KN04-MC-B2 Technical Specifications:
| Sensor Head (Dia) | M8 | |
| Sensing distance | 4 mm | |
| Body Length | Short (44 mm) | |
| Output type | PNP | |
| Installation | Non-Flush | Un Shield | |
| Connection method | M8 Connector (3-pin) | |
| Operation mode | NC (Normally Close) | |
| Response frequency | 1000 Hz | |
| Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) | |
| Detectable object | Ferrous metal | |
| Standard sensing object | 12 × 12 × 1 mm | |
| Indicator | Operation indicator (Yellow LED) | |
| Current Consumption | 10 mA max | |
| Ambient air temperature | Operation and storage: -25 to 70ºC | |
| Ambient humidity | Operation and Storage: 35 to 95% | |
| Degree of protection (IP) | IP67 | |
| Material Case | Stainless steel | |
| Material Sensing Surface | PBT | |
| Overall length | 44 mm | |
| Thread length | 21 mm | |
| Material Cable | None | |
