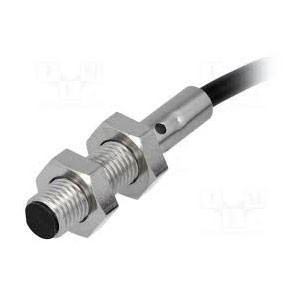

Omron E2B-S08KS01-WP-B2 2M: M8, PNP-NC, Flush
The technical specifications for the Omron E2B-S08KS01-WP-B2 2M:
Sensor Head (Dia): M8 (8mm)
Installation: Flush | Shield
Sensing Distance: 1.5 mm
Output Configuration: PNP
Switching: NC (Normally Closed)
Connection: Pre-Wired Cable, 2M Length
Omron E2B-S08KS01-WP-B2 2M Technical Specifications:
| Sensor Head (Dia) | M8 (8mm) | |
| Setting distance | 1.5 mm | |
| Standard sensing object | 8 × 8 × 1 mm | |
| Output type | PNP | |
| Installation | Flush | Shield | |
| Connection method | Pre Wired Cable, 2M Length | |
| Operation mode | NC(Normally Closed) | |
| Response frequency | 2,000 Hz | |
| Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) | |
| Detectable object | Ferrous metal | |
| Indicator | Operation indicator (Yellow LED) | |
| Current Consumption | 10 mA max | |
| Ambient air temperature | Operation and storage: -25 to 70ºC | |
| Ambient humidity | Operation and Storage: 35 to 95% | |
| Degree of protection (IP) | IP67 | |
| Material Case | Stainless steel | |
| Material Sensing Surface | PBT | |
| Overall length | 42 mm | |
| Material Cable | The standard cable is 4 mm dia. PVC | |
