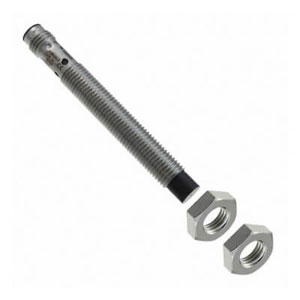

Omron E2B-S08LN04-MC-B1: Proximity Sensor, PNP-NO
The technical specifications of Omron E2B-S08LN04-MC-B1:
Size: M8
Mounting Type: Non-Flush
Sensing Distance: 4 mm
Output Type: PNP
Operation Mode: Normally Open (NO)
Connection Method: Connector M8 – 3 pin
Omron E2B-S08LN04-MC-B1 Technical Specifications:
Sensor Head (Dia) | M8 | |
Setting distance | 4 mm | |
Standard sensing object | 12 × 12 × 1 mm | |
Output type | PNP | |
Installation | Non-Flush | Un Shield | |
Connection method | M8 Connector (3-pin) | |
Operation mode | NO (Normally Open) | |
Response frequency | 1,000 Hz | |
Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) | |
Detectable object | Ferrous metal | |
Indicator | Operation indicator (Yellow LED) | |
Current Consumption | 10 mA max | |
Ambient air temperature | Operation and storage: -25 to 70ºC | |
Ambient humidity | Operation and Storage: 35 to 95% | |
Degree of protection (IP) | IP67 | |
Material Case | Stainless steel | |
Material Sensing Surface | PBT | |
Overall length | 66 mm | |
Thread length | 43 mm | |
Material Cable | None |
