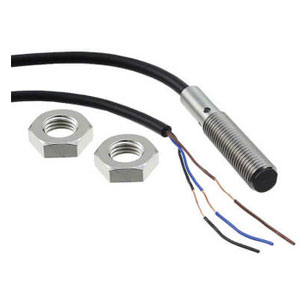

Omron E2B-S08KS02-WP-B1 2M: Shielded, 2mm, DC, 3-Wire
The technical specifications for the Omron E2B-S08KS02-WP-B1 2M:
Size: M8
Mounting Type: Flush
Sensing Distance: 2 mm
Output Type: PNP
Operation Mode: NO (Normally Open)
Connection: Pre-Wired Cable
Cable Specifications: PVC
Omron E2B-S08KS02-WP-B1 2M Technical Specifications:
| Sensor Head (Dia) | M8 | |
| Output type | PNP | |
| Rated operating distance | 2 mm | |
| Body Length | Short (42 mm) | |
| Installation | Flush | |
| Connection method | Pre Wired Cable, 2M Length | |
| Operation mode | NO | |
| Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) | |
| Cable specifications | PVC | |
| Indicator | Operation indicator (Yellow LED) | |
| Material housing | Stainless steel | |
| Ambient air temperature | Operation and storage: -25 to 70ºC | |
| Ambient humidity | Operation and Storage: 35 to 95% | |
| Degree of protection (IP) | IP67 | |
| Overall length | 42 mm | |
| Thread length | 27 mm | |
| Material Cable | The standard cable is 4 mm dia. PVC | |
| Material Sensing surface | PBT | |
